Metalwork
Joist hangers, angle brackets, restraint straps and connectors for masonry to timber to timber, timber to masonry and steel to steel connections.
-
Joist Hanger with Adjustable Height Strap (JHA)
Material
- Pre-galvanised mild steel.
Features
- A galvanised joist hanger that provides great support with ease of installation.
- Published performance values are based upon 3.75 x 30mm square twist nails being used throughout.
- Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to-support part of the connection.
- Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
- Speed-prong holds the hanger in position to allow easier attachment. The installer no longer has to try to hold hanger, joist and nail with one hand and swing a hammer with the other!
- JHA270 range features a location tab which allows easier alignment of the hanger.
- The model number and size is stamped into the seat of the hanger for easy identification, even after installation.
38, 44, 75, 91, 150mm
-

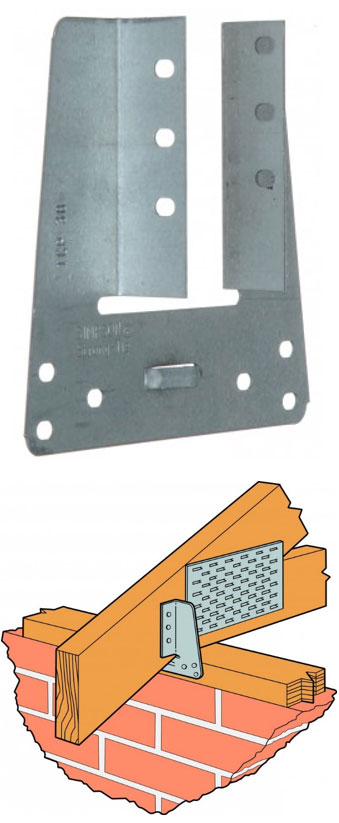

Truss Clip (TCP)
The TCP truss clip attaches girders, trusses and rafters to wall plates to provide wind restraint.
- TCP Truss Clips may be used for general purposes, strongback attachments as allpurpose ties wherever one member crosses another.
- Speed prong provides temporary attachment for ease of installation.
- Obround holes for easier nail driving.
38mm & 50mm
-

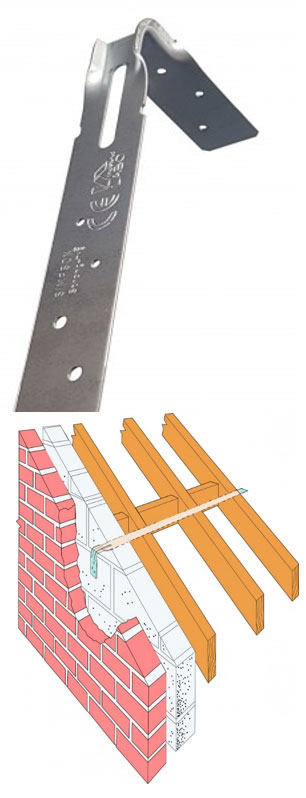

Heavy Engineered Restraint Strap
A direct replacement for traditional restraint straps, the innovative design of these lightweight straps allows ease of handling and installation whilst maintaining the structural strength and robustness of much heavier weight types.
The HES (heavy engineered strap) & LES (light engineered strap) replace
traditional heavy and light restraint straps in roof and floor construction.
Reducing the thickness to 1.5mm allows the HES strap to span the bottom
chords of trusses and over floor joists without the need for notching.HES straps are less than 40% of the weight, quicker to fit, and overcome many fixing problems associated with traditional heavy straps.
The LES is designed for vertical applications e.g. holding down wall plates
- Formed edge design gives additional strength on bend
- Quicker to install – can fit over top of floor joists and truss bottom chords
- Easier to course with blockwork
- No need to notch joists
- Complies with BS EN 845-1
600, 800, 1200 & 1500mm
-
Light Restraint Straps
- The L straps are designed to The Building Regulations for horizontal and vertical restraint.
- Light restraint straps are designed for vertical loads such as wall plates on top of masonry walls.
- All common sizes in stock from 500 to 2000mm long, 100mm increments. Longer lengths avaialble to order; contact technical support.
Material
Pre-galvanised mild steel
1000 & 1200mm
-
Mending Plate (MP)
The MP is an easy to use connector for timber splices, no nails required.
For non-structural applications only; not for truss applications.
-

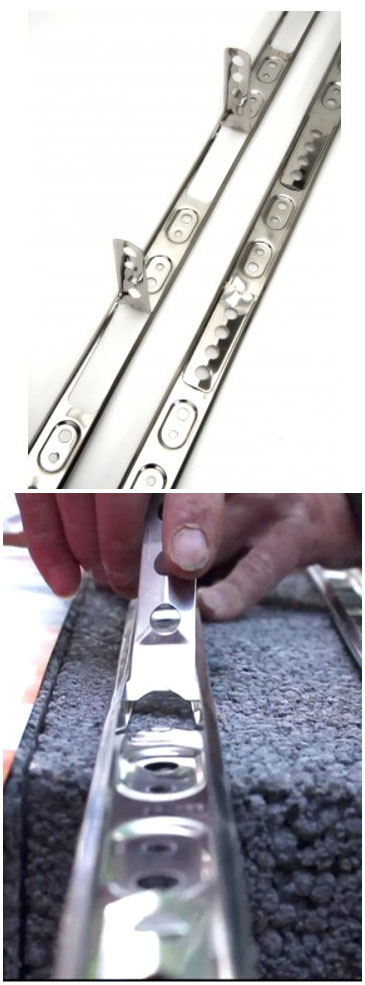

Crocodile Wall Extension Profile
The UK’s most popular solution to the tying-in of new walls to existing
masonry walls/columns. The only system with “snap out” ties which can
be positioned anywhere along the channel for a universal fit.The C2K Crocodile Wall Starter is a quality engineered wall connector
system that has been developed for use with most brick and block
modules. This system has been designed for multi-purpose use where
reliability and durability are important requirements. It provides lateral
support to masonry wall panels in conversion, extension and new
building work.- BBA Approved for up to 8m, 3 storey work.
- Accommodates 10mm of vertical movement.
- Adjustable anchor ties to accommodate variation in brick courses.
- All fixings and ties provided within the packs.
The multi-purpose ‘no flange profile’ that has been designed to cater for brick and block walls of widths from 60 to 250mm.
Ideal for internal and external applications where both sides
of the new wall are to be fair faced.Material
Stainless Steel Profiles: Austenitic stainless steel.
Mild Steel Profiles: Pre-galvanised mild steel.
Coach Screws: M6 x 50mm
Masonry Plugs: High density polythene.
